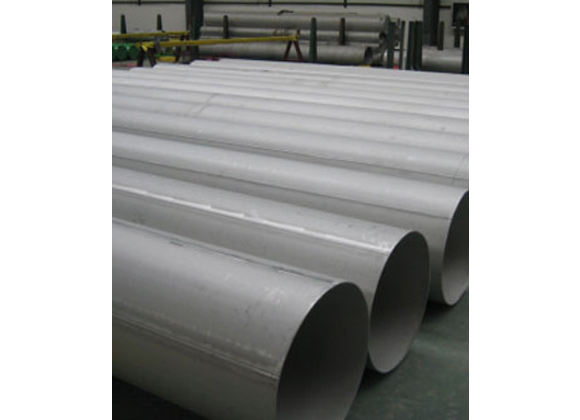

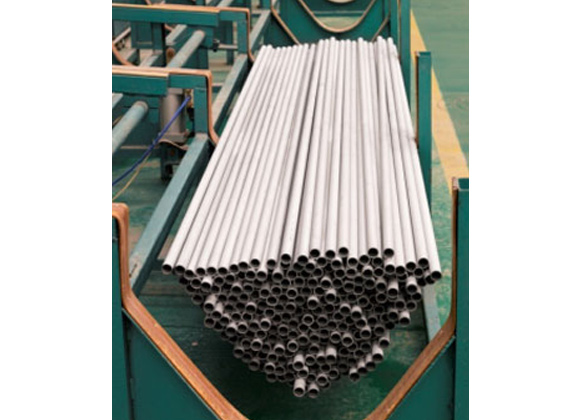

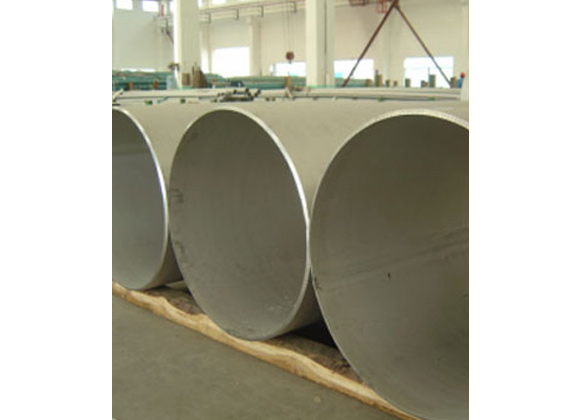

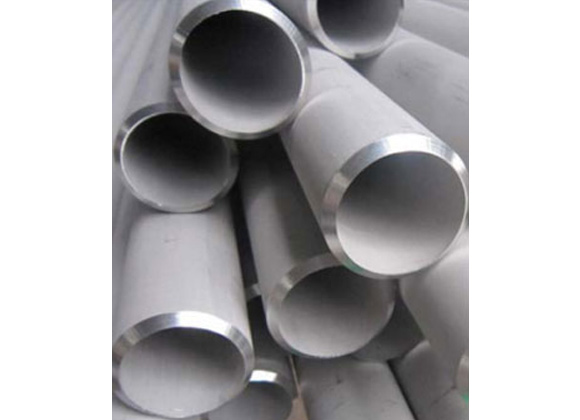

Stainless Steel Pipes

stainless steel pipe is used in high temperature, strength, and superior corrosion resistance at high temperatures. Further, stainless steel pipe is easy to clean and safe for long-term use with excellent resistance of corrosion feature. Stainless steel pipe and tubing are used in chemical plants, aviation fields, marine equipment, cryogenic transportation, medical and architectural industries and etc.

Stainless Steel Pipes Dimensions

Dimensions of Welded and Seamless Stainless Steel Pipe
NOTE   1—The decimal thickness listed for the respective pipe sizes represents their nominal or average wall dimensions.
Outside Diameter                                                                                      Nominal Wall Thickness
in.                                                mm                    Schedule 5S                    Schedule 10S              Schedule 40               Schedule 80

in.mmin.mmin.mmin.mm
1⁄80.40510.29......0.0491.240.0681.730.0952.41
1⁄40.54013.72......0.0651.650.0882.240.1193.02
3⁄80.67517.15......0.0651.650.0912.310.1263.20
1⁄20.84021.340.0651.650.0832.110.1092.770.1473.73
3⁄41.05026.670.0651.650.0832.110.1132.870.1543.91
1.01.31533.400.0651.650.1092.770.1333.380.1794.55
11⁄41.66042.160.0651.650.1092.770.1403.560.1914.85
11⁄21.90048.260.0651.650.1092.770.1453.680.2005.08
22.37560.330.0651.650.1092.770.1543.910.2185.54
21⁄22.87573.030.0832.110.1203.050.2035.160.2767.01
33.50088.900.0832.110.1203.050.2165.490.3007.62
31⁄24.000101.600.0832.110.1203.050.2265.740.3188.08
44.500114.300.0832.110.1203.050.2376.020.3378.56
55.563141.300.1092.770.1343.400.2586.550.3759.52
66.625168.280.1092.770.1343.400.2807.110.43210.97
88.625219.080.1092.770.1483.760.3228.180.50012.70
1010.750273.050.1343.400.1654.190.3659.270.500B12.70B
1212.750323.850.1563.960.1804.570.375B9.52B0.500B12.70B
1414.000355.600.1563.960.188B4.78B............
1616.000406.400.1654.190.188B4.78B............
1818.000457.200.1654.190.188B4.78B............
2020.000508.000.1884.780.218B5.54B............
2222.000558.800.1884.780.218B5.54B............
2424.000609.600.2185.540.2506.35............
3030.000762.000.2506.350.3127.92............
A  Schedules 5S and 10S wall thicknesses do not permit threading in accordance with the American National Standard for Pipe Threads (ANSI B1.20.1).
B  These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe (ANSI B36.10–1979).


Features of Stainless Steel Pipes

1. Pipe Diameter:

6mm-630mm pipe thickness : 0.8mm-25mm

2. Grade:

304, 304L, 316, 316L, 321, 317L, 310S, 904L and so on.

3. Applications Range:

for use in the petroleum, chemical, medical equipment, boiler heat-exchanger, and other fields.

4. Packing:

standard export packing.

Mill Test Certificate according to EN 10204-3.1

5. Standards:

/ASTM/ASME/DIN/JIS and etc
