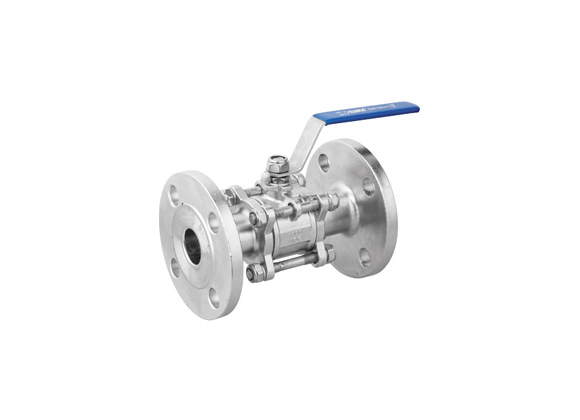

3 Piece Flanged Ball Valve

Name: 3 Piece Flanged Ball Valve
Brand: Hebei Leading Metals & Piping Industries Co., Ltd.

The three-piece ball valve consists of three parts, the valve cover and the intermediate valve body, the three-piece ball valve is different from the two-piece ball valve and a piece of ball valve lies in the disassembly maintenance.

The three-piece ball valve is mostly fixed by four bolts and play a good fastening effect. The slice is much higher than one or two pieces of ball valve.

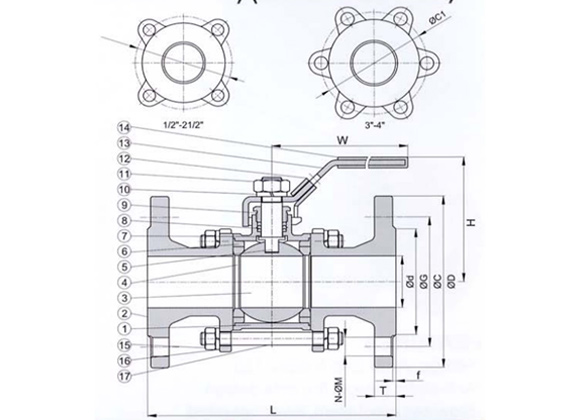

3 Piece Flanged Ball Valve Dimensions

Size	d	D	C	G	f	T	N	M	C1	L	H	W
15	15	95	65	45	2	16	4	14	52	130	68	123
20	20	105	75	58	2	18	4	14	55.5	150	80	133
25	25	115	85	68	2	18	4	14	62.5	160	84	133
32	32	140	100	78	2	18	4	18	76.9	180	92	190
40	38	150	110	88	3	18	4	18	86	200	98	190
50	50	165	125	102	3	20	4	18	107	230	103	190
65	65	180	145	122	3	18	4	18	134	290	143	264
80	80	200	160	138	3	20	8	18	155	310	154	264
100	100	220	180	158	3	20	8	18	192	350	183	503

3 Piece Flanged Ball Valve VS 2 Piece Flanged Ball Valve

1. Material:

The body material of the 3 pcs flanged ball valve is WCB & Stainless Steel. The body material of 2 pcs flanged ball valve is Gray Iron, Ductile Iron, Cast Steel, Stainless Steel.

2. Pressure (Similarity):

The pressure 2pc & 3pc flanged ball valve is Class 150/300/600/900, PN10/16/25/40/63,5K/10K/16K.

3. Range of Applications (Difference):

Stardard: ANSI CLASS 125/150, DIN 3202 PN10/16,JIS 5K,10K

Face to face: MSS-SP-85, DIN 3202 F1

Connection flange type: Flange end

4. Installation (Difference and Similarity):

Three-piece flanged ball valve pressure resistance is much higher than two-piece type, which is more convenient for disassembly and maintenance; there is no difference in the pipeline connection

3 Piece Flanged Ball Valve FAQs

Q How Long is the Warranty Period of 3 Piece Flanged Ball Valve?

A.

Generally, the warranty period is one year.

Q What Are the Features in Structure of 3 Piece Flanged Ball Valve?

A.

There is no friction when opening and closing. This function completely solves the problem of traditional valves affecting the sealing due to mutual friction between the sealing surfaces.
Top loading structure. The valves installed on the pipeline can be directly inspected and repaired online which can effectively reduce device shutdown and reduce costs.
Single valve seat design. It eliminates the safety problem due to abnormal pressure increase in the valve cavity.
Low torque design. The valve stem with a special structure design can be opened and closed easily with only a small handle.
